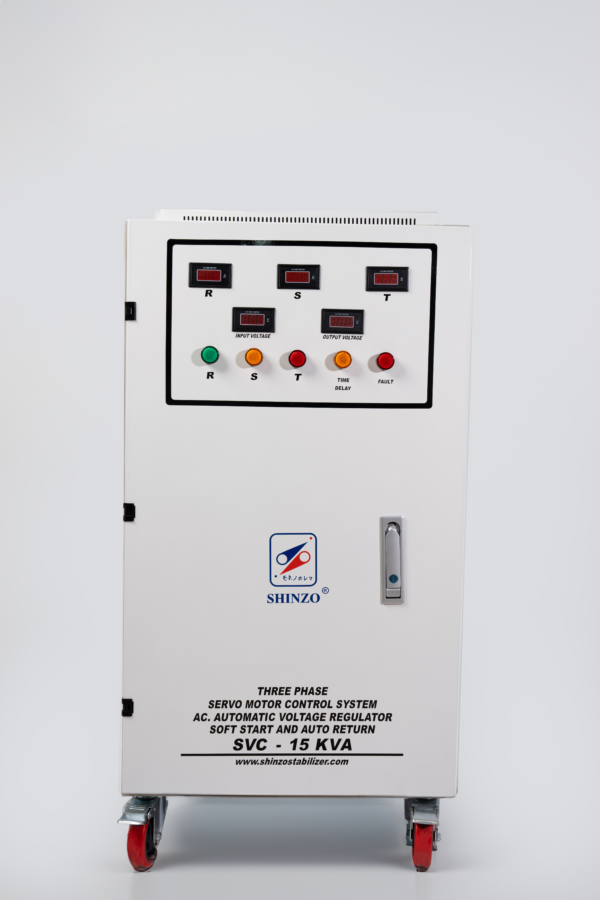

Shinzo Stabilizer Technical Specifications:
Model: SVC – 3 Phase 15 KVA
Brand: Shinzo
Input Voltage: 260 V – 420 V
Output Voltage: 380V ± 2%
Phase: Three Phase
Indicator Display: Digital Voltmeter & Ampere Meter
Power: 3 Phase 15 KVA
Frequency: 50Hz/60Hz
Rated Current: 3 X 25 A
Efficiency: More than 90%
Product Dimensions (PXLXT): 56,5 cm x 57 cm x 113 cm
Product Weight (Net): 119.6 kg
Product Weight (Gross): 134.6 kg
Working System: Fully Automatic
Cooling System: Cooled Fan With Thermostat Sensor
Control System: DC Servo Motor
Response Time: Within 0.5 sec. ~ 1 sec. against 10% input voltage deviation
Ambient Temperature: -5°C ~ +35°C
Ambient Humidity: Less than 90% (Relative Humidity)
Temperature Rise: Less than 70°C
Insulation Resistance: >2 MΩ
Wave Distortion: ≤1%
Output Voltage Accuracy: ±2%
Withstand Voltage: 2000 V/min
Isolation Resistance: >2 MΩ
Output Protection: 420V Automatic Cut-off
Package: Plywood Box
